Philips model BX718X

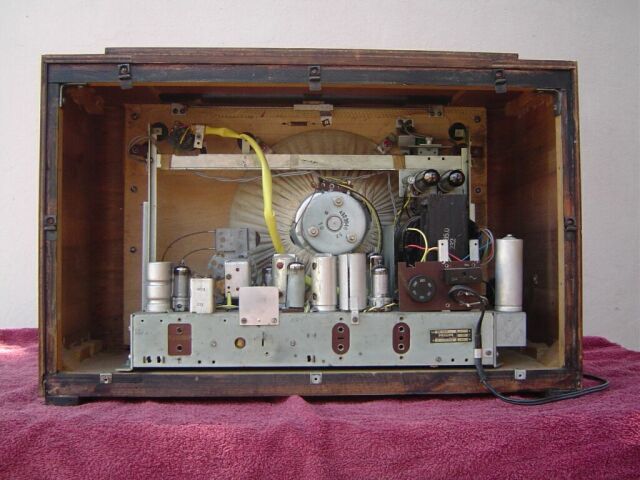

BX 718X interior
General features
|
Circuit type |
Superheterodyne, 452kHz IF with delayed AVC |
|
Dimensions |
500x290x225mm, 10.75kg |
|
Cabinet |
Bakelite, combined plastic grille / dial |
|
Loudspeaker |
250mm, moving coil, permanent magnet |
|
Main controls |
Tone, volume/on-off, tuning, waveband switch, PU switch, bandwidth selector |
|
Extra controls |
Local/remote switch |
|
Connections |
Antenna, ground, PU, external loudspeaker |
|
Power (BX416A and BX426A) |
AC, 110 to 250V in 6 steps, W |
Wave
bands
|
MW |
|
|
SW1 |
|
|
SW2 |
|
|
SW3 |
|
|
SW4 |
|
|
SW5 |
|
|
SW6 |
|
Circuits and Tubes
|
RF preamplifier |
EF41 remote cutoff pentode |
|
Oscillator and mixer |
ECH42 triode-hexode |
|
IF amplifier |
EBF80 diode- remote cutoff pentode |
|
Audio amplifier,det and AVC |
EBC41 duodiode-triode |
|
Audio amplifier phase splitter |
EBC41 duodiode-triode |
|
Push-pull audio power amplifier |
2x EL41 9W pentodes |
|
Rectifier |
2x AZ41 dual power diodes |
|
Tuning indicator |
EM34 dual fluorescent tube-triode |
