Philips
model 288A
General
features
|
Circuit type |
Superheterodyne, 452kHz IF with
delayed AVC |
|
Dimensions |
545x345x210mm, 14kg |
|
Cabinet |
Bakelite, cloth grille, printed
glass dial |
|
Loudspeaker |
200mm, moving coil, permanent
magnet |
|
Main controls |
Volume/on-off, waveband switch,
tuning at front, tone at left side |
|
Extra controls |
Radio/PU |
|
Connections |
Antenna, ground, PU, external
loudspeaker |
|
Power |
AC, 110-245V in 6 steps, 50W |
Wave
bands
|
MW |
160-570m |
|
MW local |
160-570m |
|
SW |
45-160m |
|
SW |
13.5-45m |

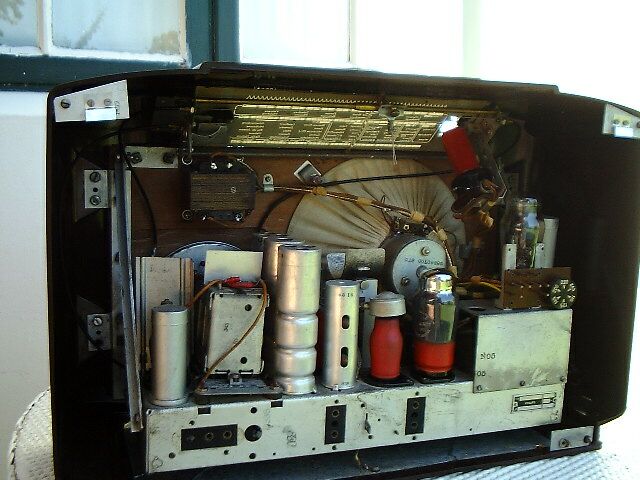

Circuits
and Tubes
|
RF preamplifier |
EF8 low noise remote cutoff
pentode |
|
Oscillator and mixer |
EK2 octode |
|
IF amplifier |
EF9 remote cutoff pentode |
|
Detector and audio amplifier |
EBC3 duodiode-triode |
|
Audio power amplifier |
EL3 9W pentode |
|
Rectifier |
AZ1 dual diode |
|
Tuning indicator |
EM3 fluorescent tube-triode |
