Philips
model 215A and 216A.

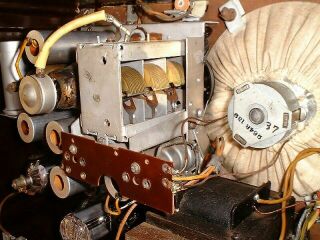

215A interior

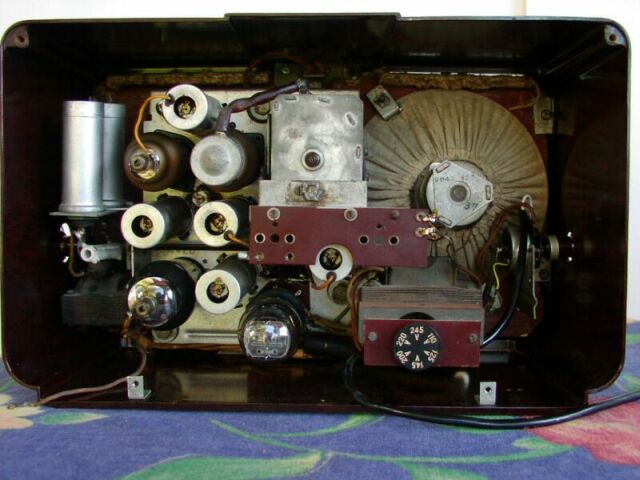

216A interior
General
features
|
Circuit type |
Superheterodyne, 128kHz IF with
simple AVC |
|
Dimensions |
420x245x200mm, 7.5kg |
|
Cabinet |
Bakelite, cloth grille, printed
metal dial |
|
Loudspeaker |
165mm, moving coil, permanent
magnet |
|
Main controls |
Tuning (front), volume/on-off
(left) and waveband switch (right) |
|
Connections |
Antenna, ground, PU |
|
Power |
AC, 110-245V in 6 steps, 55W |
Wave
bands
|
LW |
708-2000m |
|
MW |
198-585m |
|
SW |
16.7-51m |
Circuits and Tubes
|
Oscillator and mixer |
AK2 octode |
|
IF amplifier |
AF3 remote cutoff pentode |
|
Detector and audio power amplifier
|
ABL1 duodiode- 9W pentode |
|
Rectifier |
AZ1 dual power diode |
